Viscometer

E-type viscometer (cone plate)

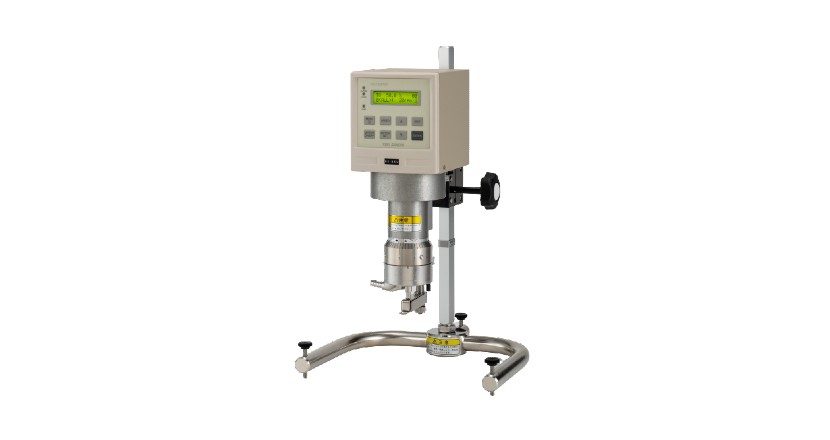

RE-85 type viscometer

A digital viscometer with an auto-lock mechanism that protects the pivot shaft.
When the measurement is completed, the rotor shaft is automatically locked, so you can measure with confidence.

Features

  • Auto lock mechanism
  • Preheat / auto stop function
  • Power interlock mechanism
  • Data output

catalog

Operating principle


The rotation of the motor is transmitted to the rotor via the spiral spring, and the viscous torque acts on the rotor rotating in the measurement liquid.
The spiral spring rotates in a twisted state by an angle proportional to the magnitude of this viscous torque, and the torsional angle of the spiral spring is the same as the torsional angle between the two slit discs connected to both ends of the spiral spring.
The photo sensor provided for each slit disk reads this twist angle and displays it in terms of viscosity.

Measurement range

Model Range Measurement range
RE85L
RE85H
RE85R
RE85U
67.37 μN・m
718.7 μN・m
1437.4 μN・m
5749.6 μN・m
0.6  ~  1,200 mPa・s
6.4  ~  12,800 mPa・s
12.8 ~ 25,600 mPa・s
51.9 ~ 102,400 mPa・s
